CABLE - BLUE 3.5 MM PHONE PLUG EXTENSION JUMPER
CABLE - BLUE 3.5 MM PHONE PLUG EXTENSION JUMPER
CABLE - BLUE 3.5 MM PHONE PLUG EXTENSION JUMPER
CABLE - BLUE 3.5 MM PHONE PLUG EXTENSION JUMPER

CABLE - BLUE 3.5 MM PHONE PLUG EXTENSION JUMPER

Regular price
$3.00
Sale price
$3.00
Shipping calculated at checkout.

The Cable-Blue Adapter converts a standard 5.5 mm Barrel Plug to a 3.5 mm (1/8ā€) Phone Plug.

The Cable-Blue is wired so that the pin (tip) of the female barrel plug connects to the sleeve of the male phone plug.

If connected to a standard, tip-negative power source, this will provide a positive (+) polarity on the tip of the male phone plug.

The C-BL offers the following features:

  • 1 x Female Barrel jack to connect to Power-All or other power source (C-M/MĀ Cable may be required to connect C-BL to brick-style power supplies)
  • 1 x straight Phone Plug to connect to pedals or other cables
  • 26-gauge Cable with oil-resistant vinyl sheath
  • 12ā€ (approx. 305 mm) Cable length between plugs
  • NEWĀ Lo-Proā„¢ PlugĀ design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

power-all low profile plug comparison

SPECIFICATIONS:

  • Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.

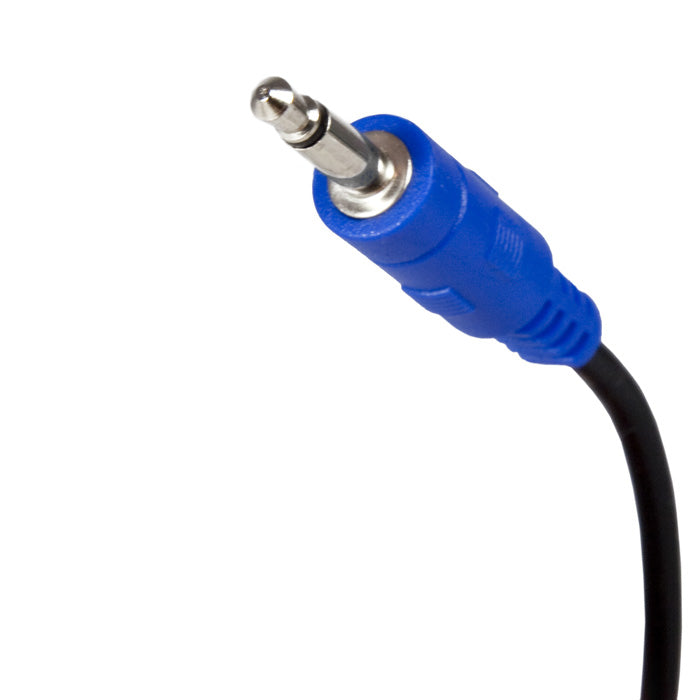

  • Male Phone Plug (1): 3.5 mm O.D.; 15 mm plug length
  • Cable: 26-gauge, OFC with oil-resistant vinyl sheath
  • 12ā€ (approx. 305 mm) Cable length between plugs

TIPS:

  • Output polarity of C-BLā€™s Male Phone Plug is dependentĀ on the polarity of the power source it is connected to.Ā  For example:Ā  If power source is tip-negative (-), then output polarity of the C-Bl's male phone plug will be tip-positive (+)
  • ConnectĀ C-M/MĀ Cable to C-BLā€™s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
  • For Dunlop DC Brick, connect Male Phone Plug to DC Brick & Female Barrel Jack toĀ C-M/M, Daisy-Chain*, Y-Splitter* or Adaptor Cables
  • ConnectĀ Cable-RedĀ to Female Barrel Jack of the C-BL to reverse (flip) the output polarity of the Male Phone plug.Ā Ā
  • Confused?Ā  E-mail us at info@godlyke.comĀ with questions before making any power connections.

NOTE:

Some pedals that require tip-positive polarity at their power input are actually wired with a positive ground to chassis. Some examples of this are the Fuzz Face & Tonebender and many boutique pedals based on these designs.

Pedals with this ground configuration cannot be powered from a series power source (e.g. a Daisy Chain) along with pedals that have a negative ground to chassis.

In this case, the GH-1 Ground Hound could be used on the positive-ground pedal to allow it to be powered along with negative-ground to chassis pedals off the same Daisy Chain.

Please contact us atĀ info@godlyke.comĀ for more information on this issue.

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
