Power Up to 11 Pedals from a Single Supply

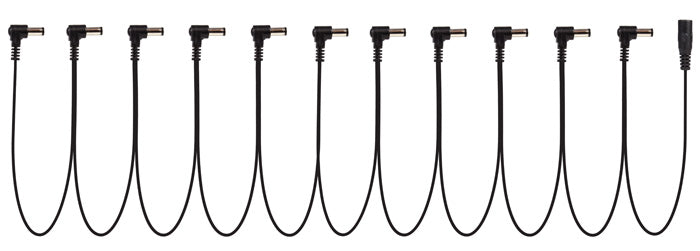

The Power-All® 11-Lead Right-Angle Daisy Chain Cable distributes power from a single adapter to up to eleven guitar pedals. It’s an easy and reliable way to power an entire pedalboard without the need for multiple power supplies.

Low-profile right-angle barrel plugs keep cables close to the pedal chassis, reducing clutter and saving valuable space on crowded pedalboards.

Whether you’re running a compact setup or a large effects rig, the C-11/R provides flexible power distribution with secure, dependable connections.

Specifications

Connector Configuration

• 1 × Female barrel jack (power input) [*C-M/M & C-BK Cable may be required to connect C-11/R to brick-style power supplies]
• 11 × Right-angle 2.1mm male barrel plugs (pedal outputs)

Connector Size

• 5.5 mm outer diameter
• 2.1 mm inner diameter
• 10 mm barrel length

Cable

• 26-gauge OFC cable
• Oil-resistant vinyl sheath

Spacing

• 12 in (approx. 305 mm) cable length between plugs

TIPS:

• Output polarity of C-11/R’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if the Power Supply is tip-negative, then all C-11/R outputs will be tip-negative)
• Connect C-M/M Cable to C-11/R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
• Connect additional Daisy-Chains to C-11/R’s last male Barrel Plug to power additional pedals*
• Connect Cable-Red to female jack of C-11/R to reverse the output polarity of all male plugs
• Connect Cable-Red to male plug on C-11/R to reverse the output polarity of that plug
• Use C-Cap to cover unused male Barrel Plugs & prevent short-circuits

NOTE:

All effect units to be powered should have the same ground configuration to-chassis. Effects with different ground configurations cannot be powered off the same PA-9 unit without using the Ground Hound ground isolator unit (sold separately). Please contact us at info@godlyke.com for more information.

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.

**Pedals and Power Supply sold separately.
