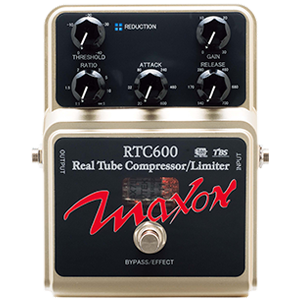

REAL TUBE COMPRESSOR (RTC600)

• Studio-Grade Compressor with real Vacuum Tube
• Variable 1:1 - 1:∞ compression Ratio
• Capable of “Brick Wall” and “Soft Knee” compression
• Variable compression Attack and Release times
• Up to +30 dB of Gain for maximum headroom
• Heater In-rush current control warms tube upon power-up
• True Bypass Switching

The RTC600 is like taking the finest studio-grade tube compressors and “squeezing” them all down into a single stompbox.

The RTC600 starts out with the same patented DBX compression circuit used in Maxon’s popular CP-9 Pro+ pedal - this circuit provides a very smooth, transparent, almost “glassy” compression with very low noise floor, even at maximum settings.  Your guitar sounds like your guitar, only with compression added to smooth out the dynamics.

The RTC600’s dual-triode tube is positioned pre-compression, adding classic valve warmth to the signal without increasing noise levels.

With up to +30 dB of clean Gain, the RTC can be used as a clean booster or as an attenuator to clean up an already dirty amp.

The Addition of Attack and Release controls to the circuit allow for a wider variety of compression effects, including “Brick Wall” limiting and “Soft Knee” compression.

The RTC600 features an internal charge pump circuit that bumps the incoming voltage up to 25 volts, providing massive headroom and full-range frequency response.  The RTC600 can be used with any instrument and for a variety of applications – it can be sent into an amp’s front end, placed in an effects loop, or used as an outboard processor for home recordings.

The RTC600 features True Mechanical Bypass switching using a 3PDT switch.  The RTC600 comes complete with the Maxon AC2009 9-Volt power supply, an auto sensing digital power supply that can be used anywhere in the world.

For studio-quality compression in a compact Stompbox, the RTC600 is the only REAL choice.
