Power Your Line 6 HX Pedals from a Standard 9V Supply

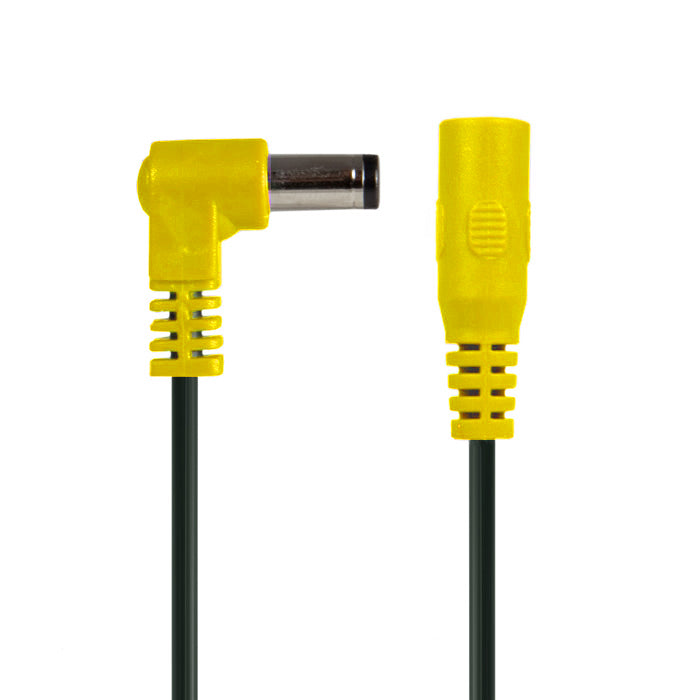

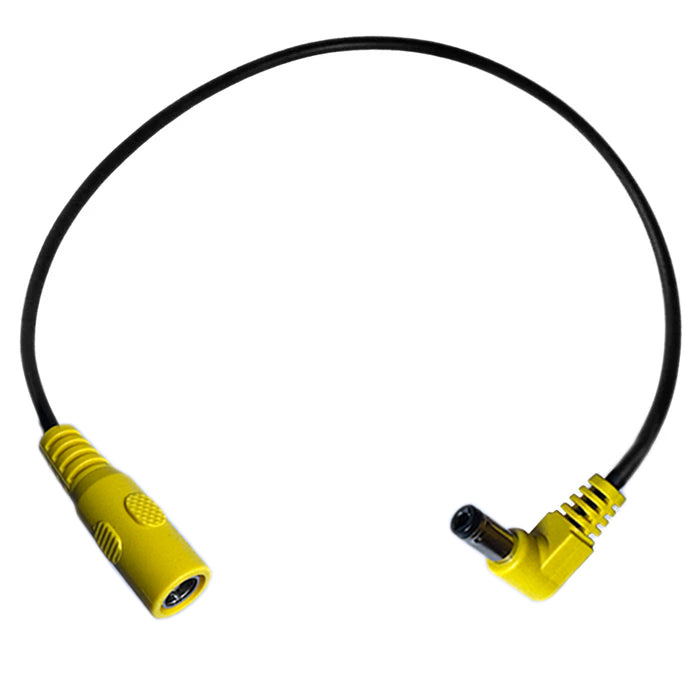

The Power-All Cable-Yellow Adapter allows standard 9V DC 2.1mm center-negative power supplies—including the Power-All ECO-Dapter—to power newer Line 6 HX series pedals and the DL4 MkII.

Many Line 6 HX pedals require a larger 2.5mm power plug, which prevents them from connecting directly to typical pedal power supplies. The Cable-Yellow solves this by converting a standard 2.1mm output to the required 2.5mm plug, while maintaining the correct polarity.

Its low-profile right-angle plug keeps your pedalboard tidy and fits easily into tight power jack locations.

Compatible pedals include (but not limited to):

• Line 6 HX Effects
• Line 6 HX One
• Line 6 HX Stomp
• Line 6 HX Stomp XL
• Line 6 DL4 MkII Delay Modeler

It may also work with other pedals that require 9V DC with a 2.5mm center-negative power connector.

Features

• 2.1mm → 2.5mm power adapter cable for HX-series pedals
• Right-angle Lo-Pro™ plug saves pedalboard space
• Spring-loaded barrel connectors reduce accidental disconnection
• 10" flexible cable ideal for pedalboard wiring
• Oil-resistant vinyl sheath for durability
• OFC 26-gauge cable for reliable power delivery

Specifications

Female Barrel Jack

• 5.5 mm outer diameter
• 2.1 mm inner diameter

Right-Angle Male Barrel Plug

• 5.5 mm outer diameter
• 2.5 mm inner diameter
• 10 mm barrel length

Cable

• 26-gauge OFC cable
• Oil-resistant vinyl sheath

Length

• 10" (255 mm) between plugs
• Approx. 11.5" total length

Setup Tips

• The Cable-Yellow does not change polarity — output polarity matches the connected power source.
• To connect to brick-style power supplies with female jacks, use a C-M/M cable.
• If reverse polarity is required, connect a Cable-Red polarity-reversal adapter to the female end or use Cable-Green instead of the Cable-Yellow.
• Use a C-Cap plug cover on unused connectors to prevent shorts.

*For powering the original Line 6 DL4 MkI, use the Cable-Green adapter instead.

Important Note

Some vintage-style pedals (such as Fuzz Face or Tone Bender designs) use positive-ground circuitry and cannot share power with standard negative-ground pedals on the same daisy chain

In these cases, the GH-1 Ground Hound can isolate the pedal so it can safely share a power supply.

*Line 6 is a registered trademark of Yamaha Guitar Group, Inc. Use of this name does not imply endorsement by or affiliation with Godlyke, Inc. or Power-All.
