The Cable Male-to-Male straight/right-angle Extension Cable provides an additional 10.5” of length for longer power runs. It can also be used to connect pedals to Brick-style power supplies.
The C-MM/SR offers the following features:
- 1 x straight Male Barrel plug to connect to pedals or other cables (C-F/F may be required to connect to Power-All or other power source with Male Barrel plugs. C-BL may be needed to connect to older Dunlop DC Brick power supplies)
- 1 x right-angle Male Barrel plug to connect to pedals or other cables (C-F/F may be required to connect to Power-All or other power source with Male Barrel plugs. C-BL may be needed to connect to older Dunlop DC Brick power supplies)
- Spring-loaded male plugs to reduce chance of disconnection
- 26-gauge Cable with oil-resistant vinyl sheath

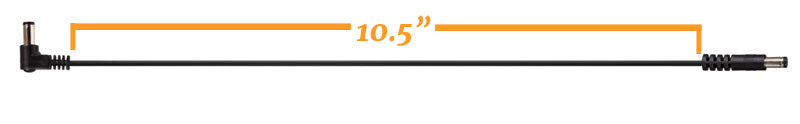

- 10.5” (approx. 264 mm) Cable length between plugs
- NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient
SPECIFICATIONS:
- Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
- Right-Angle Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
- Cable: 26-gauge, OFC with oil-resistant vinyl sheath
- 10.5” (approx. 264 mm) Cable length between plugs
TIPS:
- Output polarity of C-MM/SR’s Male Barrel Plug will match output polarity of source connected to other Male Barrel Plug (i.e. if source is tip-negative, then C-MM/SR output polarity will be tip-negative)
- Connect Daisy-Chain, Y-Splitter or Adaptor Cables to C-MM/SR’s male Barrel Plug to power additional pedals* or connect colored cables to change the plug connection type.
- Connect Cable-Red to pedal-end of the C-MM/SR to reverse the output polarity of the male plug.
- Use C-Cap to cover unused Male Barrel Plug & prevent short-circuits
*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
