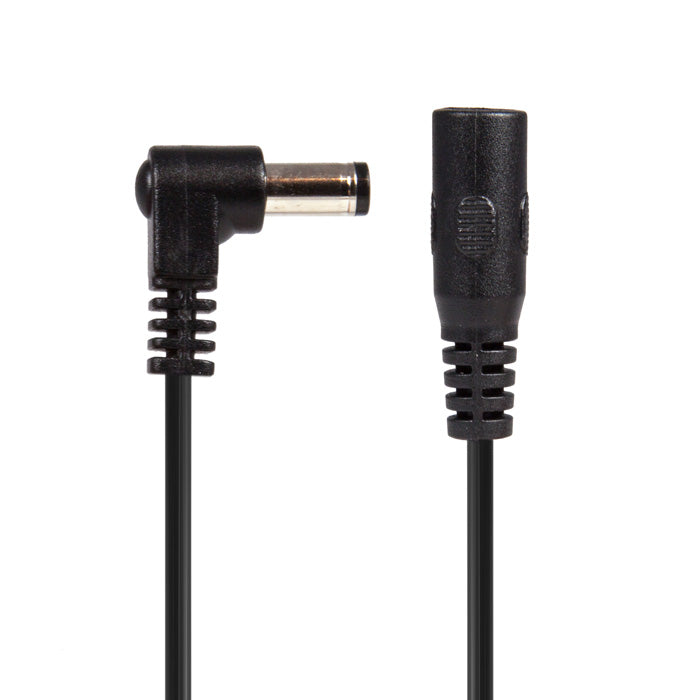

CABLE - BLACK RIGHT-ANGLE EXTENSION JUMPER

The Cable-Black/R Right-Angle Extension Cable provides an additional 10.5” of length for longer power runs, oversized pedals or hard-to-reach power jacks.

The C-BK/R offers the following features:

• 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BL Cable may be required to connect C-BK to brick-style power supplies)
• 1 x right-angle Male Barrel plug to connect to pedals or other cables
• Spring-loaded male plugs to reduce chance of disconnection
• 26-gauge Cable with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

SPECIFICATIONS:

• Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
• Right-Angle Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
• Cable: 26-gauge, OFC with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs

TIPS:

• Output polarity of C-BK/R’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if Power Supply is tip-negative, then C-BK outputs will all be tip-negative)
• Connect C-M/M Cable to C-BK/R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
• Connect Daisy-Chain, Y-Splitter or Adaptor Cables to C-BK/R’s male Barrel Plug to power additional pedals* or connect colored cables to change the plug connection type.
• Connect Cable-Red to either end of the C-BK/R to reverse the output polarity of the male plug.
• Use C-Cap to cover unused Male Barrel Plug & prevent short-circuits

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
