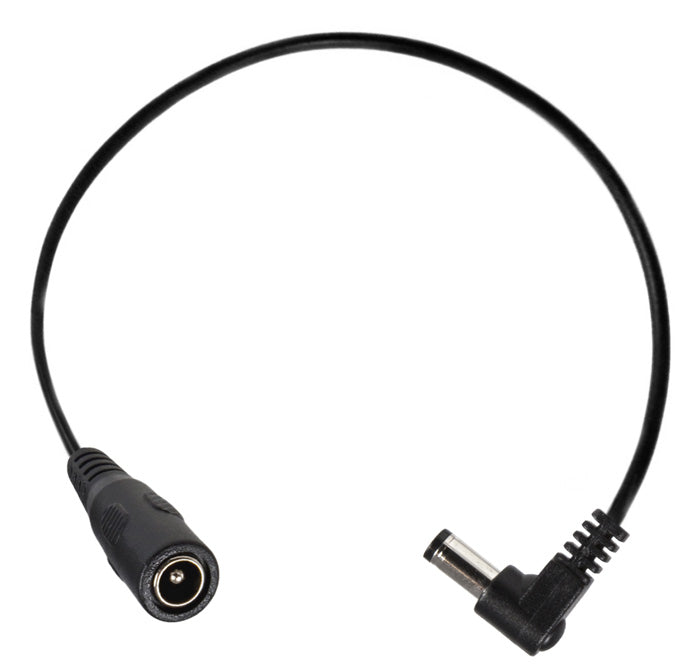

The Cable-Black/R Right-Angle Extension Cable provides an additional 10.5” of length for longer power runs, oversized pedals or hard-to-reach power jacks.

The C-BK/R offers the following features:

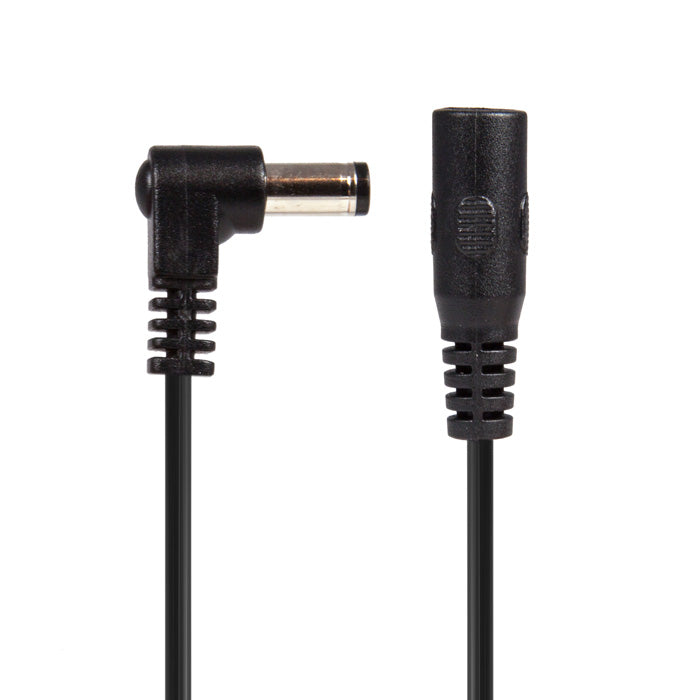

  • 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BL Cable may be required to connect C-BK to brick-style power supplies)

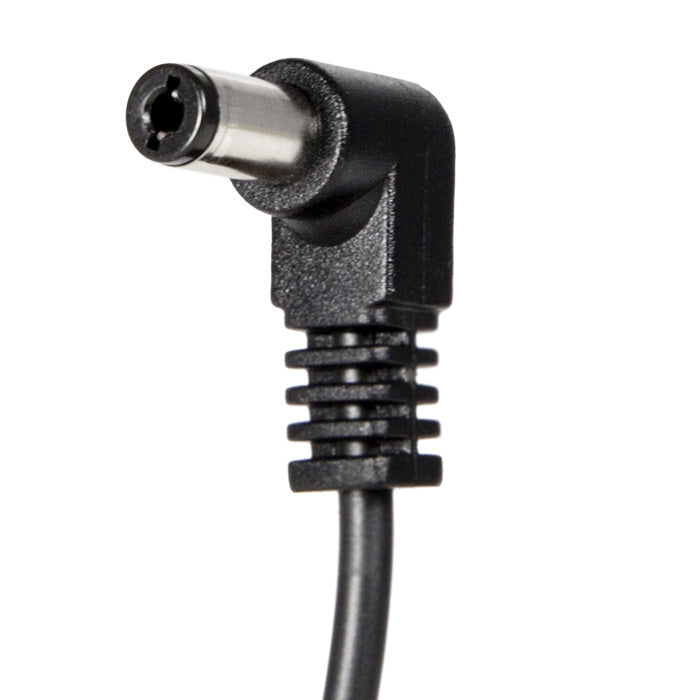

  • 1 x right-angle Male Barrel plug to connect to pedals or other cables
  • Spring-loaded male plugs to reduce chance of disconnection
  • 26-gauge Cable with oil-resistant vinyl sheath

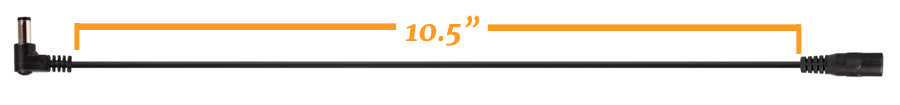

  • 10.5” (approx. 264 mm) Cable length between plugs
  • NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

power-all low profile plug comparison


  • Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
  • Right-Angle Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
  • Cable: 26-gauge, OFC with oil-resistant vinyl sheath
  • 10.5” (approx. 264 mm) Cable length between plugs


  • Output polarity of C-BK/R’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if Power Supply is tip-negative, then C-BK outputs will all be tip-negative)
  • Connect C-M/M Cable to C-BK/R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
  • Connect Daisy-Chain, Y-Splitter or Adaptor Cables to C-BK/R’s male Barrel Plug to power additional pedals* or connect colored cables to change the plug connection type.
  • Connect Cable-Red to either end of the C-BK/R to reverse the output polarity of the male plug.
  • Use C-Cap to cover unused Male Barrel Plug & prevent short-circuits

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
