CABLE - BAT/R BATTERY SNAP TO RIGHT-ANGLE MALE BARREL

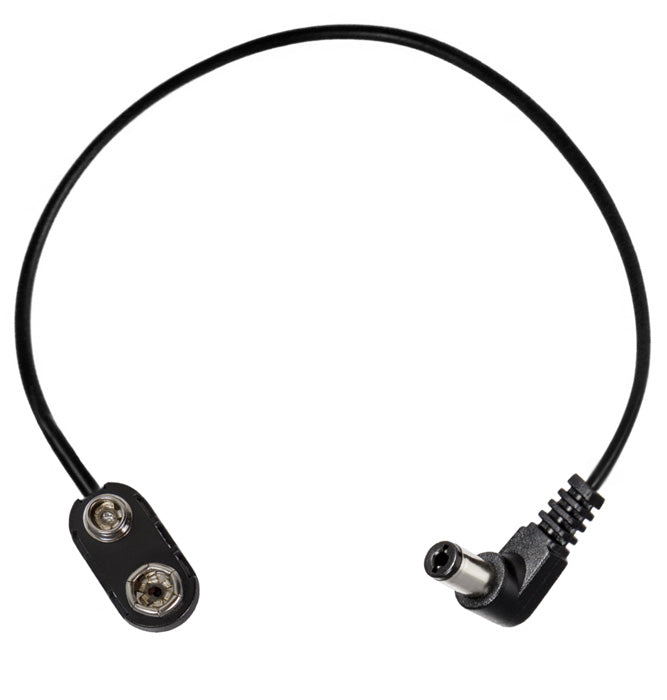

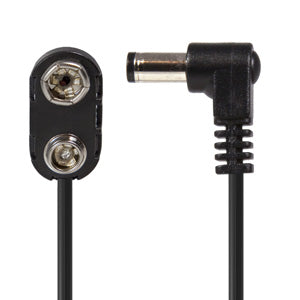

The C-BAT/R cable is designed to connect pedals with no battery option to a 9-volt battery (see photos). It can also be use to connect pedals with no AC jack to a power source with a Female Barrel Jack (see Tips below).

The C-BAT/R offers the following features:

• 1 x Battery Snap to connect to Battery (or Battery Snap on pedal – see TIPS below)
• 1 x right-angle Male Barrel plug to connect to pedals, other cables, Power-All or other power source (C-M/M & C-F/F Cables may be required to connect C-BAT/R to brick-style power supplies)
• Spring-loaded Male Barrel plug to reduce chance of disconnection
• 26-gauge Cable with oil-resistant vinyl sheath

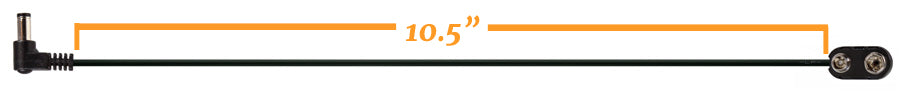

• 10.5” (approx. 264 mm) Cable length between plugs
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

SPECIFICATIONS:

• Hard-Plastic, RoHS Battery Snap (1) with standard polarity connections
• Right-Angle Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
• Cable: 26-gauge, OFC with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs

TIPS:

• Polarity of C-BAT/R’s Male Barrel Plug is tip-negative. If pedal has a tip positive connection, then use C/R to “flip” the polarity before connecting C-BAT/R to a battery.
• Connect C-F/F Cable to C-BAT/R’s Male Barrel Jack to connect to other cables/power sources with male barrel plugs/jacks
• Connect C-F/F & C-M/M to C-BAT/R to connect to power sources with Female Power Output Jacks
• Polarity of C-BAT/R battery snap is the same as a battery snap on a pedal. In order to connect C-Bat/R to a pedal’s battery snap, first connect Cable-Red to male barrel of C-BAT/R to reverse the output polarity of C-BAT/R’s battery snap.

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
