CABLE - BLACK EXTENSION JUMPER
CABLE - BLACK EXTENSION JUMPER
CABLE - BLACK EXTENSION JUMPER
CABLE - BLACK EXTENSION JUMPER

CABLE - BLACK EXTENSION JUMPER

Regular price
$3.00
Sale price
$3.00
Shipping calculated at checkout.

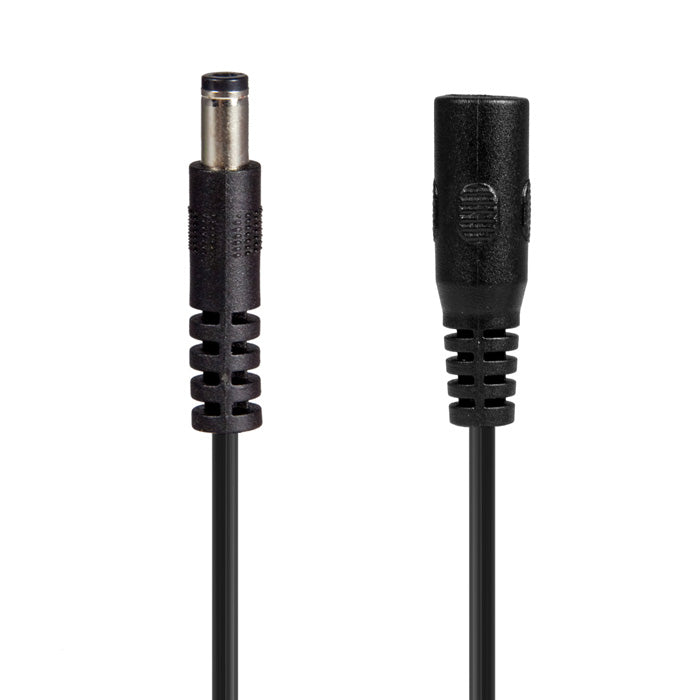

The Cable-Black Extension Cable provides an additional 10.5” of length for longer power runs, oversized pedals or hard-to-reach power jacks.

The C-BK offers the following features:

  • 1 x Female Barrel jack to connect to Power-All or other power source ( &  Cable may be required to connect C-BK to brick-style power supplies)
  • 1 x straight Male Barrel plug to connect to pedals or other cables
  • Spring-loaded male plugs to reduce chance of disconnection
  • 26-gauge Cable with oil-resistant vinyl sheath

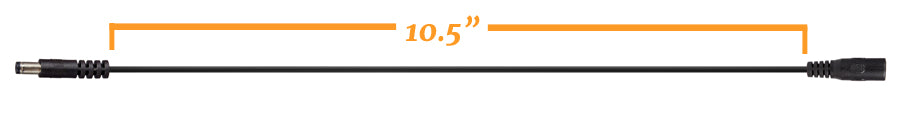

  • 10.5” (approx. 264 mm) Cable length between plugs

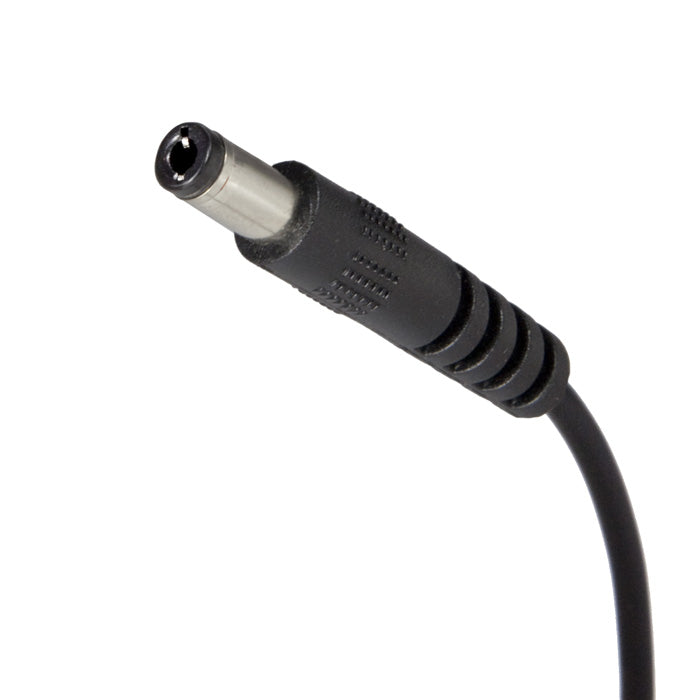

  • NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

    power all low profile plug comparison

    SPECIFICATIONS:

    • Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
    • Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
    • Cable: 26-gauge, OFC with oil-resistant vinyl sheath
    • 10.5” (approx. 264 mm) Cable length between plugs

    TIPS:

    • Output polarity of C-BK’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if Power Supply is tip-negative, then C-BK outputs will all be tip-negative)
    • Connect  Cable to C-BK’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
    • Connect Daisy-Chain, Y-Splitter or Adaptor Cables to C-BK’s male Barrel Plug to power additional pedals* or connect colored cables to change the plug connection type.
    • Connect  to either end of the C-BK to reverse the output polarity of the male plug.
    • Use  to cover unused Male Barrel Plug & prevent short-circuits

    *Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
